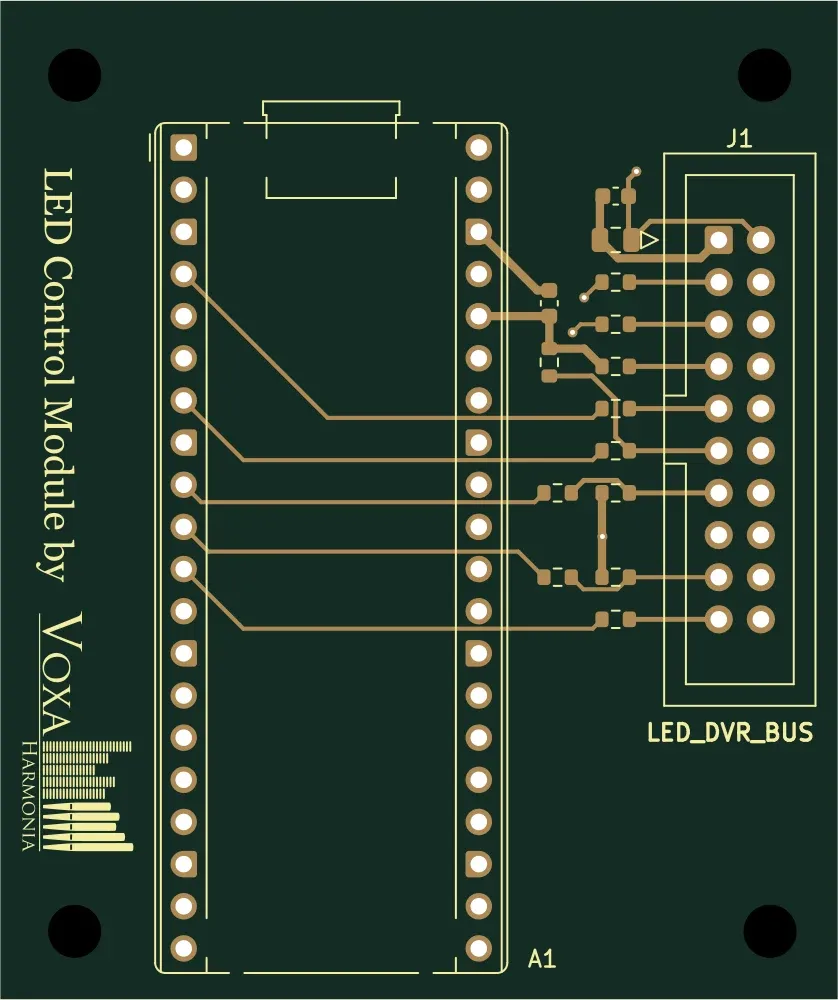

Control Module LED

LED control

A dedicated USB-MIDI controller for daisy-chained LED Driver 64 boards. It converts computer MIDI messages into LED-driver control signals.

• Raspberry Pi Pico, powered by USB.
• BUS_OUT → LED Driver 64 BUS_IN, using an IDC 2×10 connection.
• Up to 3–4 LED Driver 64 modules can be daisy-chained: 3 modules provide 192 LED channels and 4 provide 256, with firmware configured for the module count.

LED power is supplied separately through the driver boards’ 5 V power connectors.
